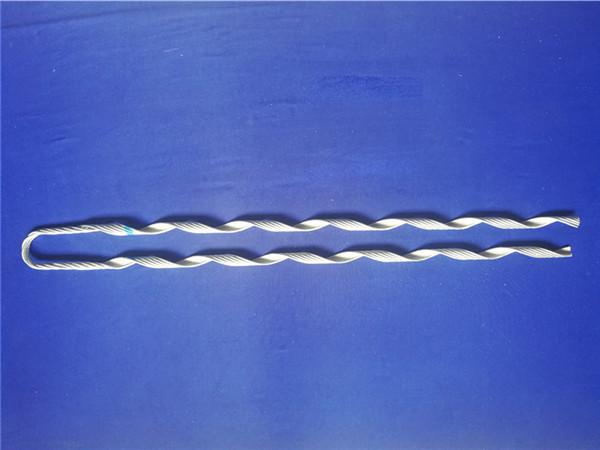

Preformed dead end for conductor
Preformed dead end for conductor is made of galvanized steel wire,aluminum-clad steel wire or aluminum-allovy wire,and is designed for conductor installation in transmission and distribution lines.The conductor includes ACSR,AAAC,plastic jacketed conductor.The product grips the conductor uniformly to prevent distortion of the conductor and the grip strenth is not less than 95%RTS of the conductor.During installation,care should be taken to ensure a successful installation.This product is intended for use by trained craftspeople only.
| Preformed Dead End for ACSR,AAAC | |||||||
| Dia.Range | Type | Wire Size | No.of | Material | Length | Weight | Color Code |
| (mm) | (mm) | rods | (mm) | (kg) | |||
| 4.62-5.16 | DN 1110 | 2.31 | 3 | Galvanized steel | 406 | 0.08 | BLUE |
| 5.80-6.53 | DN 1111 | 2.31 | 3 | Galvanized steel | 445 | 0.1 | ORANGE |
| 7.35-8.26 | DN 1112 | 2.59 | 3 | Galvanized steel | 625 | 0.17 | RED |
| 8.27-9.25 | DN 1113 | 3.0 | 3 | Galvanized steel | 660 | 0.24 | GREEN |
| 9.26-10.39 | DN 1114 | 3.25 | 3 | Galvanized steel | 675 | 0.28 | YELLOW |
| 10.40-11.68 | DN 1115 | 3.25 | 3 | Galvanized steel | 725 | 0.3 | BLUE |
| 11.69-13.11 | DN 1116 | 3.51 | 3 | Galvanized steel | 815 | 0.4 | ORANGE |
| 13.12-14.66 | DN 1117 | 3.65 | 4 | Galvanized steel | 875 | 0.62 | RED |
| 14.67-16.59 | DN 1118 | 3.65 | 4 | Galvanized steel | 889 | 0.64 | BLACK |
| 16.60-17.69 | DN 1119.1 | 4.11 | 5 | Galvanized steel | 980 | 1.09 | GREEN |
| 17.70-18.77 | DN 1119.2 | 4.11 | 5 | Galvanized steel | 1005 | 1.14 | YELLOW |
| 18.78-21.26 | DN 1120 | 4.78 | 5 | Galvanized steel | 1160 | 1.8 | ORANGE |
| 21.27-23.00 | DN 1121 | 4.78 | 6 | Galvanized steel | 1270 | 2.37 | BLUE |
| 23.01-24.08 | DN 1122 | 5.18 | 6 | Galvanized steel | 1800 | 3.88 | RED |
| Right hand lay is standard | |||||||
|
|
